Bert Ball Spline
CAN'T FIND YOUR PART? CALL 0491 845 484 TO ORDER

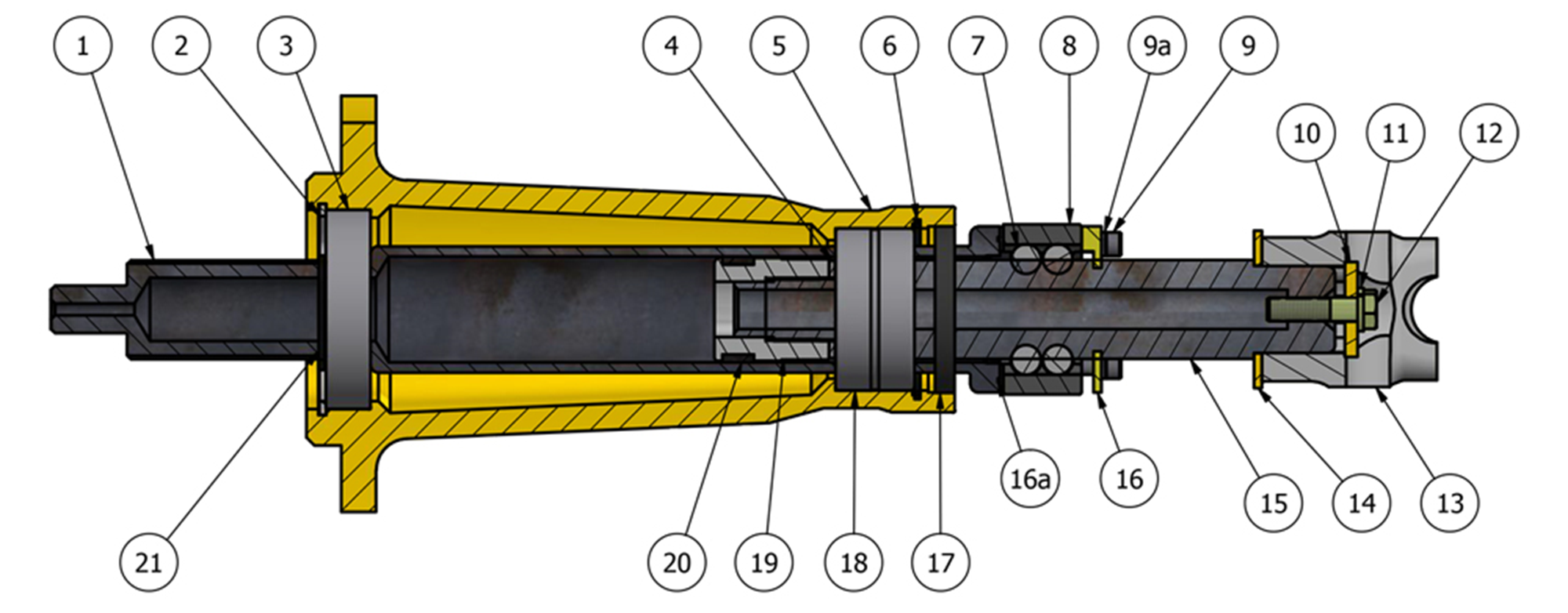

| # | PART NO | DESCRIPTION |
| KIT 1 | BER3-BS-OK | Overhaul Kit w/ Single Seal + Zerks |
| KIT 2 | BER3-BS-OK-N | Overhaul Kit w/ Double Seal + Zerks |
| 1 | BER3-01 | 1st Gen Ball Spline Output Shaft |
| 2 | BERSG-1160 | 1st/2nd Gen Tailhousing Retaining Ring |
| 3 | BERSG-1350 | SG Deep Groove Ball Bearing |
| 4 | BER19-C | Thrust Washer - (.090") |
| 5 | BER3-05 | 1st Gen Ball Spline Tail Housing |
| 6 | BERSG-1505 | SG Snap Ring |
| 7 | BER3-07 | Ball Spline 1st/2nd Gen Retaining Ring Ball |
| 8 | BER3-08B | Ball Spline 1st/2nd Gen Retaining Ring |
| 9 | BER3-09 | Ball Spline 1st/2nd Gen Retaining Ring Allen Head Bolt |
| 9a | BER3-09A | Ball Spline 1st/2nd Gen Retaining Ring Lock Washer |
| 10 | BERSG-1213 | Ball Spline 1st/2nd Gen Rear Yoke Washer |
| 11 | BERSG-1253 | Ball Spline 1st/2nd Gen Rear Yoke Lock Washer |
| 12 | BERSG-1252 | Ball Spline 1st/2nd Gen Rear Yoke Hex Head Bolt |
| 13 | BER3-13 | Ball Spline 1st/2nd Gen Rear Yoke |
| 14 | BER3-14 | Ball Spline 1st/2nd Gen Rear Shaft Stop Washer |
| 15 | BER3-18 | Ball Spline 1st/2nd Gen Rear Shaft |
| 16 | BER3-15-KG | Ball Spline 1st/2nd Gen Retaining Ring Outer Seal |
| 16a | BER3-15-B | Ball Spline 1st/2nd Gen Retaining Ring Inner Seal |
| 17 | BERSG-1506 | Rear Seal |
| 18 | BERSG-1504 | SG Needle Bearing - (2" ID - 2-9/16" OD) |
| 19 | BER3-20 | Ball Spline 1st/2nd Gen Rear Shaft Friction Bushing |
| 20 | BER3-19 | Ball Spline 1st/2nd Gen Friction Bushing Wear Ring |
| 21 | BERSG-1083 | Snap Ring - (1-1/2" ID) |
