Bert Second Gen
CAN'T FIND YOUR PART? CALL 0491 845 484 TO ORDER

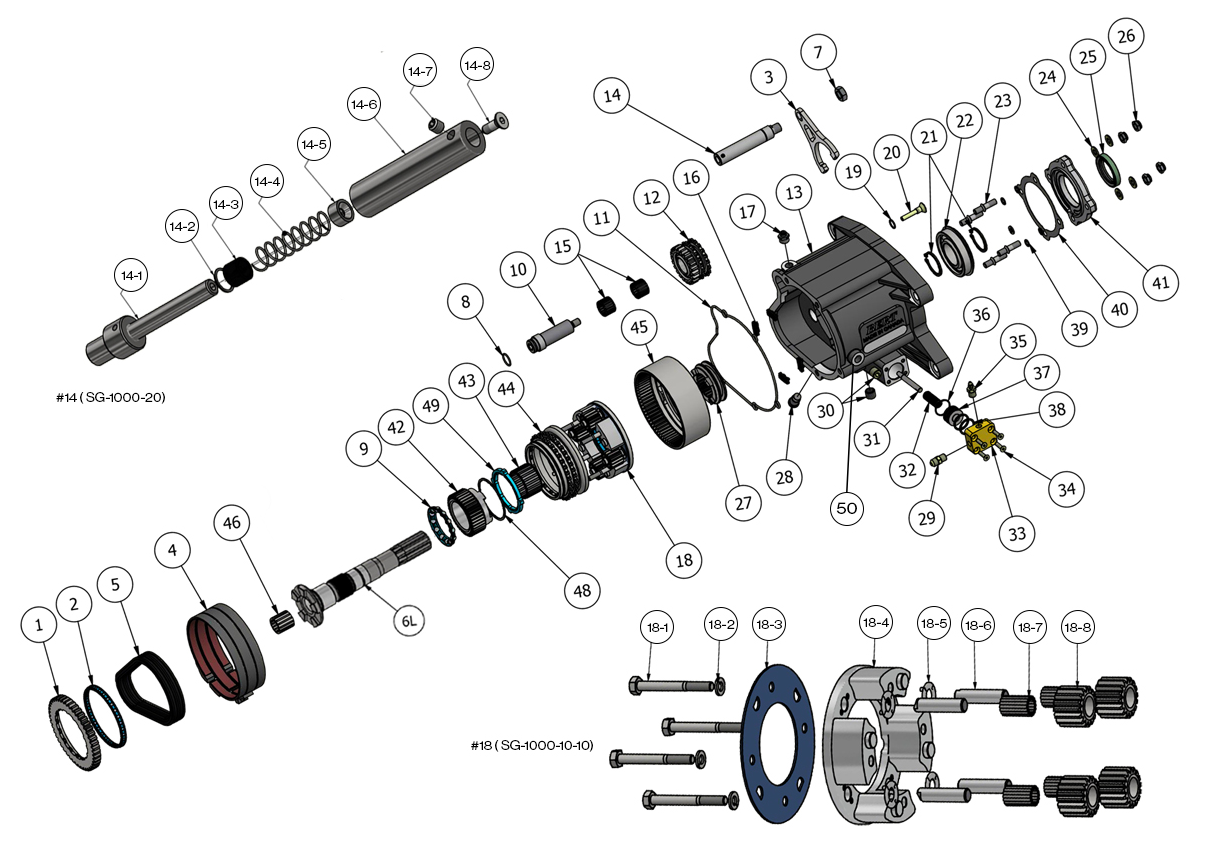

| # | PART NO | DESCRIPTION |
| KIT1 | BERSG-91K | Basic Rebuild Kit |
| 1 | BERSG-1029 | Reverse Gear |
| 2 | BERSG-1031-K | Reverse Bearing |
| 3 | BERSG-1017 | Selector Fork |
| 4 | BERSG-1030-K | Clutch Band |
| 5 | BERSG-1076 | Double Row Chain |
| 6L | BERSG-1003 | Input Shaft - (1300/1400/1500) |
| 7 | BERSG-1056 | Hex Nylon Lock |
| 8 | BERSG-1079 | O-Ring - (1/16" W - 5/8" ID - 3/4" OD) |
| 9 | BERSG-1032-K | Carrier Support Bearing |
| 10 | BERSG-1027 | Reverse Gear Shaft |
| 11 | BERSG-1038 | Tail Casting Gasket |
| 12 | BERSG-1028 | Reverse Idler Gear |
| 13 | BERSG-1001 | Main Casting |
| 14 | BERSG-1000-20 | Front Fork Sub Assembly |
| 14-Jan | BERSG-1023 | 2nd Gen Front Fork Shifting Rod Holder |
| 14-Feb | BERSG-1075 | 2nd Gen Front Fork Shifting Rod Internal Retaining Ring |
| 14-Mar | BERSG-1025 | 2nd Gen Front Fork Shifting Rod Spring Washer |
| 14-Apr | BERSG-1073 | 2nd Gen Front Fork Shifting Rod Spring |
| 14-May | BERSG-1026 | 2nd Gen Front Fork Shifting Rod Spring Compressor |
| 14-Jun | BERSG-1024 | 2nd Gen Front Fork Shifting Rod Spring Holder |
| 14-Jul | BERSG-1072 | 1072 Set Screw |
| 14-Aug | BERSG-1074 | 2nd Gen Front Fork Shifting Rod Countersunk Bolt |
| 15 | BERSG-1057 | Needle Bearing - (13/16" ID - 7/8" OD) |
| 16 | BERSG-1021 | Thrust Washer |
| 17 | BERSG-1068 | Breather |
| 18 | BERSG-1000-10-10 | Carrier Sub Assembly |
| 18-Jan | BERSG-1070 | 2nd Gen Carrier Sub Assembly Hex Head Bolt |
| 18-Feb | BERSG-1071 | 2nd Gen Carrier Sub Assembly Lock Washer |
| 18-Mar | BERSG-1010 | Carrier Washer Plate |
| 18-Apr | BERSG-1008 | Planetary Carrier |
| 18-May | BERSG-1015 | Planetary Gear Thrust Washer (4 Req) |
| 18-Jun | BERSG-1014 | Planetary Shaft (4 Req) |
| 18-Jul | BERSG-1059 | Planetary Needle Bearing - .091 (4 Req) |
| 18-Aug | BERSG-1013 | Planetary Gear (4 Req) |
| 19 | BERSG-1054 | O-Ring - (1/16" W - 7/16" ID - 9/16" OD) |
| 20 | BERSG-1022 | Hexagon Socket Head Cap Screw |
| 21 | BERSG-1080 | External Retaining Rings |
| 22 | BERSG-1053 | Input Shaft Bearing |
| 23 | BERSG-1037 | Front Cover Stud |
| 24 | BERSG-1156 | Flat Washer |
| 25 | BERSG-1052 | Front Oil Seal |
| 26 | BERSG-1258 | Hex Nylon |
| 27 | BERSG-1006 | R L Selector |
| 28 | BERSG-1033 | Band Anchor Stud |
| 29 | BERSG-1064 | Servo Adapter |
| 30 | BERSG-1063 | Magnetic Drain Plug |
| 31 | BERSG-1019 | Servo Shaft |
| 32 | BERSG-1078 | Heavy Duty Compression Spring |
| 33 | BERSG-1020 | Servo Cover |
| 34 | BERSG-1066 | Flat Head Screw |
| 35 | BERSG-1065 | Servo Bleed Adaptor |
| 36 | BERSG-1081 | O-Ring - (1/16" W - 13/16" ID - 1.00" OD) |
| 37 | BERSG-1018 | Servo Piston |
| 38 | BERSG-1077 | O-Ring - (1/8" W - 3/4" ID - 1" OD) |
| 39 | BERSG-1082 | Stud O-Ring |
| 40 | BERSG-1039 | Front Cover Gasket |
| 41 | BERSG-1004 | Front Cover |
| 42 | BERSG-1012 | Sun Gear |
| 43 | BERSG-1069 | Needle Bearing - (1-9/16" ID - 1-3/4" OD) |
| 44 | BERSG-1009 | L & R Carrier |
| 45 | BERSG-1007 | Carrier Crown |
| 46 | BERSG-1058 | Needle Bearing - (3/4" ID - 1" OD) |
| 48 | BERSG-1016 | Sun Gear Thrust Ring |
| 49 | BERSG-1011 | Carrier Support |
| 50 | BERSG-1084 | Drain Plug |
