KSE GEN 2
CAN'T FIND YOUR PART? CALL 0491 845 484 TO ORDER

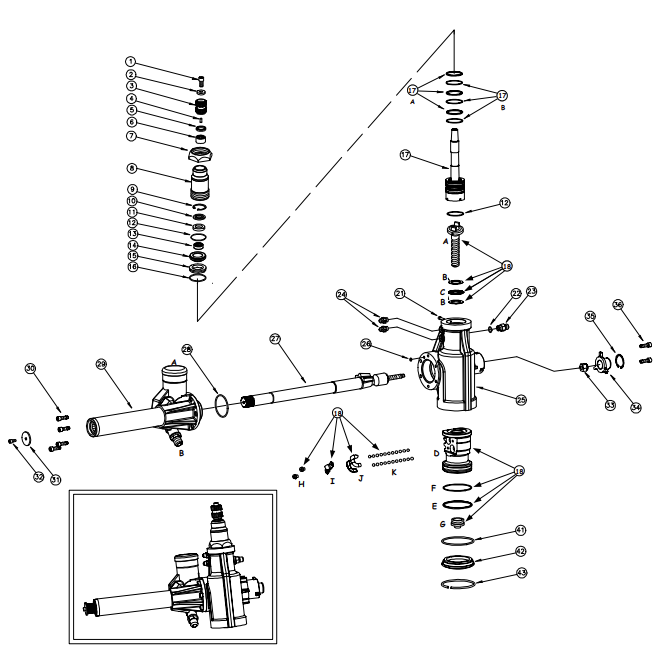

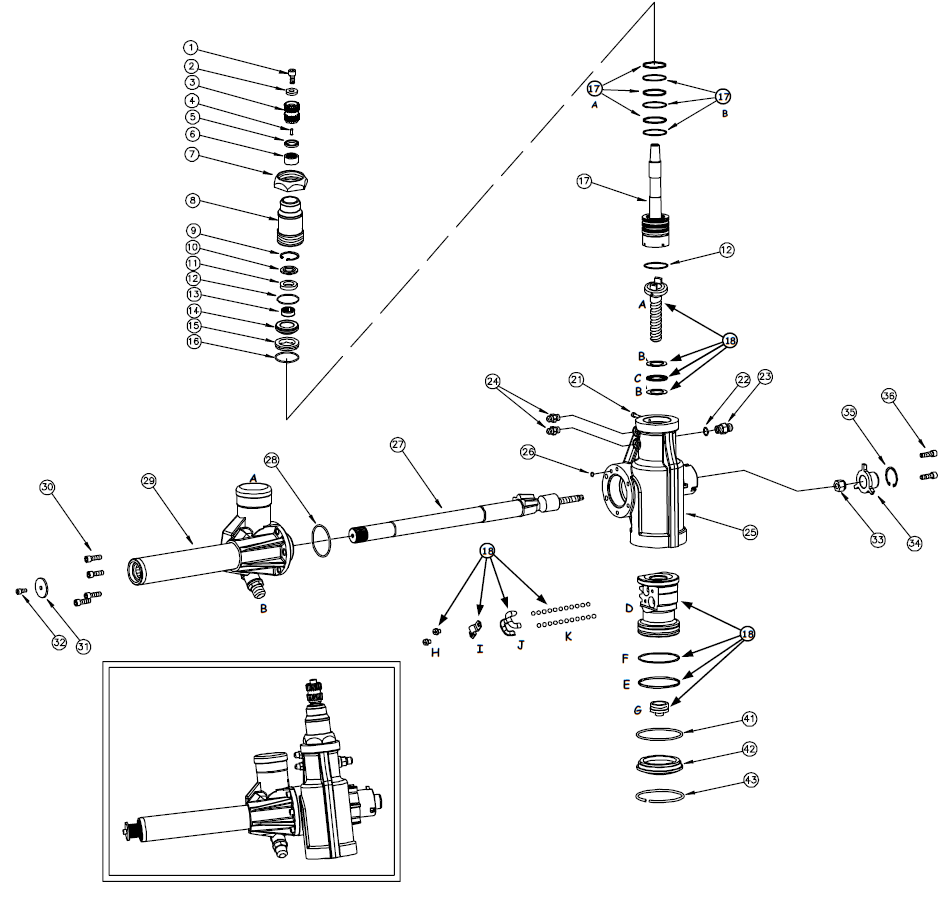

| # | PART NO | DESCRIPTION |
| KSG-GEN2L-5650B | Black Series Gen2 Power Steering Gear | |
| KIT | KSG0035 | Seal Kit |
| 1 | KSM 1057-075 | 3/8-24 UNF SHCS |
| 2 | KSM 1097-375 | Hardened Flat Washer |
| 3 | KSG 1025 | Quick Release Adapter (Splined) |
| 4 | KSM 1056 | Pin Drive Hub |
| 5 | KSM 1063 | Input Lip Seal |
| 6 | KSM 1062 | Needle Bearing (7/8”) |
| 7 | KSG 1059 | Input Jam Nut |
| 8 | KSG 1055-XXX | Input Tube / Collar (10” or 11”)* |
| 9 | KSM 1026-137 | Int. Snap Ring – Input Tube |
| 10 | KSM 1034 | Input Lip Seal – Thin |
| 11 | KSM 1035 | Input Lip Seal – Thick |
| 12 | KSM 1020-030 | Ball Screw / BC O-Ring B/70 (2 Req) |
| 13 | KSG 1056 | Bearing Collar |
| 14 | KSM 1042 | Needle Bearing – BC |
| 15 | KSG 1035 | Input Thrust Bearing Assy. |
| 16 | KSM 1020-133 | Input Nut O-Ring B/70 |
| 17 | KSG 005X-2XX* | Valve Assembly |
| 17A | KSG 1042-031 | Valve Teflon Rings (3 Req) |
| 17B | KSM 1020-031 | Valve O-Ring B/70 (3 Req) |
| 18 | KSG 0029 | Rack Assembly |
| 18A | Not Available Separately | Ball Screw |
| 18B | KSG 1088 | Thrust Washers |
| 18C | KSG 1087 | Thrust Bearing |
| 18D | Not Available Separately | Rack Piston |
| 18E | KSM 1020-149 | O-Ring |
| 18F | KSG 1041-149 | Piston Ring |
| 18G | KSG 1063 | Rack Plug |
| 18H | Not Available Separately | Retainer Strap Screws (2 Req) |
| 18I | Not Available Separately | Retainer Strap |
| 18J | Not Available Separately | Ball Channels |
| 18K | Not Available Separately | Balls |
| 21 | KSM 1002-075 | 10-32 UNF SHCS – Input Nut Lock |
| 22 | KSM 1021-906 | O-Ring - Tube Fitting (2 Req) |
| 23 | KSM 1016B | #6 ORB to #6 JIC Straight Blue |
| 24a | KSM 6002 | #3 O-Ring #3 37º Flare |
| 24b | KSM 6001 | Optional #3 O-Ring Plug |
| 25 | KSG 1074 | Center Section |
| 26 | KSM 1021-110 | Return Port O-Ring |
| 27 | KSG 0022-XXG2** | Cross Shaft Assembly |
| 28 | KSM 1020-143 | O-Ring Side Hub B/70 |
| 29 | KSG 1055-0XX** | Live Hub Reservoir Assembly |
| 29A | KSG 2010-DS | Reservoir Cap and Dip Stick |
| 29B | KSM 1073 | #10 O-Ring to #10 AN Fitting |
| 30 | KSM 1005-087 | 5/16-18 UNC SHCS (4 Req) |
| 31 | KSM 1095 | Dust Cover/Pitman Arm Washer |
| 32 | KSM 1004-050 | 1/4-28 UNF SHCS |
| 33 | KSM 1048-437 | UNF Neo Lock Nut |
| 34 | KSG 1077 | Backlash Bolt Cover |
| 35 | KSM 1026-175 | Cover Retaining Ring |
| 36 | KSM 1005-250 | SHCS (2 Req) |
| 41 | KSM 1020-236 | O-Ring Bottom Plate B/70 |
| 42 | KSG 0028 | Bottom Retaining Plate |
| 43 | KSM 1025 | Wire Retainer Ring – Bot. Plate |
| 48 | KSM 1112-062 | 1/16-27 NPT (2 Req) |
