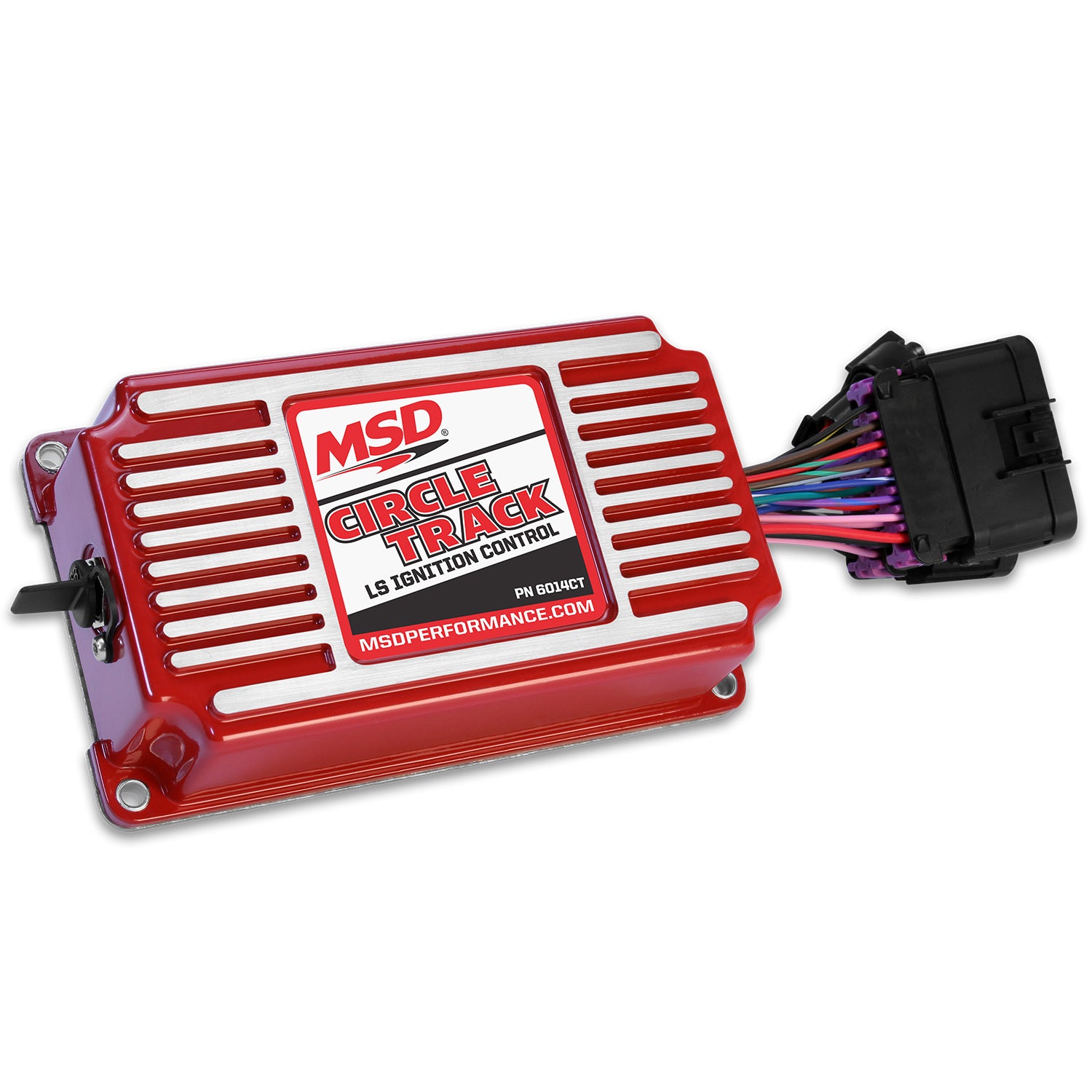

Msd Ignition Ls Ignition Controller Gm Ct525 Crate Engines/ls Engines 6014ct

Direct plug-in to factory GM LS sensors and coils.

1. Preprogrammed to run the GM CT525 crate engine out of the box.

2. Laptop programmable RPM limit, timing curve and coil selection for custom tuning

3. Auto detects coils, cam sensor and crank sensor.

4. Will run 24x 1x, 58x 1x and 58x 4x crank / cam sensor combinations.

5. Self-powered with USB for laptop programming.

6. Steady, accurate timing control.

Parts Included:
1 – Ignition Control, PN 6014CT
1 – Main Wiring Harness
1 – Sub Harness
1 – Crank/Cam Pigtail 24x/1x
1 – Crank/Cam Pigtail 58x/4x
1 – USB Cable
1 – Mounting Kit
1 – MSDView USB Flash Drive
