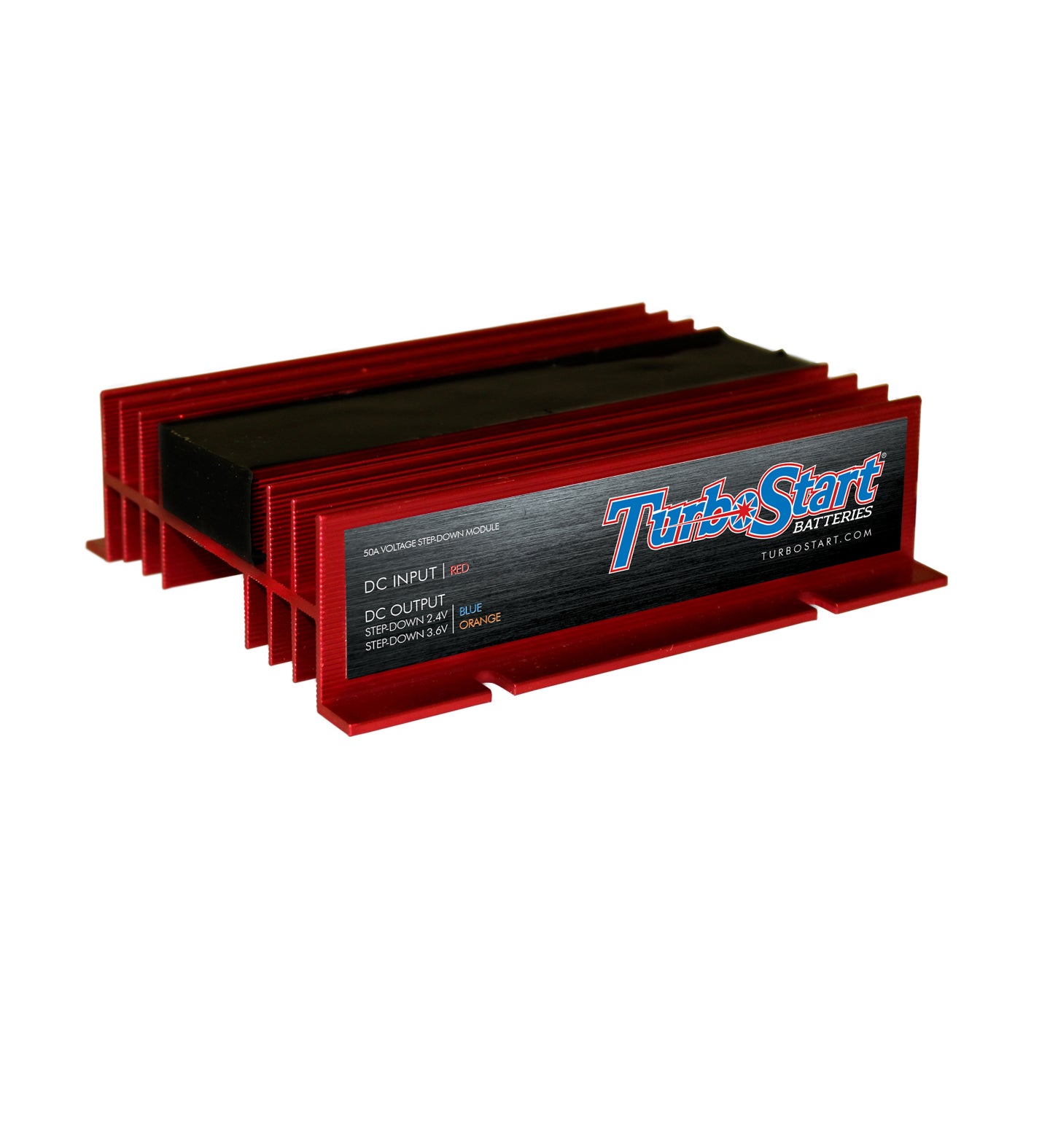

Voltage Step-Down Module: 25AMP Continuous, 50AMP Max
OUTPUT(Blue & Orange Wires)
– When not using an alternator- Connect sensitive components to the blue wire. This will drop the voltage 2.4 volts and will yield around 14.5 volts on a typical application with a fully charged battery.
.
– When using an alternator- Connect sensitive components to the orange wire. This will drop voltage 3.6 volts and will yield around 14.9 volts on a typical application.
